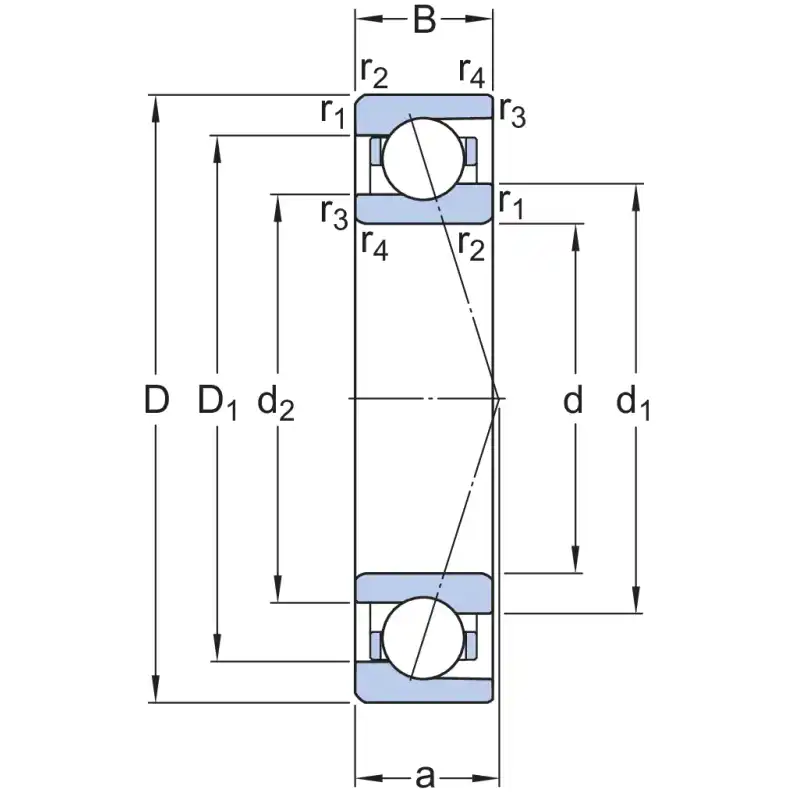

Shoulder diameter of inner ring (small side face) | d2 | 40.20 | mm |
Chamfer dimension (large side face) | r1,2 | min.0.6 | |
Distance from side face to pressure point | a | 11 | mm |
Outside diameter | d2 | 55 | mm |
Shoulder diameter of inner ring (large side face) | d1 | 41.70 | mm |
Recess diameter of outer ring (large side face) | D2 | 50.30 | mm |
Chamfer dimension (small side face) | r3,4 | min.0.3 | |
Bore diameter | d | 35 | mm |
Width | B | 10 | mm |
Stock | 8 pcs. |
---|---|
Part number | S71907CE-GA/HC-P4A |
Manufacturer | SKF |
Quantity | Unit Price |
---|---|
1 - 4 | $426.24 |
5+ | $417.72 |
